PET Films



Polyester (PET) Film has outstanding dimensional and thermal stability, excellent tensile strength, good barrier and electric insulation properties. It is widely used as a substrate of lamination for flexible package, electric insulation component in electric industries. Our PET film manufacturer in China is ISO 9001 certified since 1997. Products include:

Plain PET Films

Silicone Coated PET Film

Chemical Treated Polyester Film-Type 201

Chemical Treated Polyester Film-Type 211

 Matte PET Films

Electric Insulation PET Films

 Aluminum metallized PET Films

 Color PET Film

Plain PET Films

Description:

It is clear, with one side or both side corona-treated polyester film.

Gauge (micron):  12  ~ 100

Feature:

bullet

Good mechanical properties and tensile strength.

bullet

Excellent chemical and moisture resistance.

bullet

Good thermal performance.

bullet

Excellent electrical Insulation.

bullet

Good lamination adhesion with corona-treated.

bullet

Good printing effect.

bullet

FDA compliant for contact with food and beverage.

Application:

bullet

Lamination and printing for package.

bullet

Electric insulation and cable wrapping.

bullet

Metallizing and lamination for high barrier packaging.

bullet

Label, tape, and decoration.

Specification:

48 Gauge, Clear, One side corona-treated

Packaging Grade

Sc. No.

Testing content

Index

Inspection

Standard

1

Average thickness(gauge)

480.96

ASTM D374

2

Thickness deviation



(%)

Average

2

ASTM D374

Limited

4

3

Tensile strength



(PSI)

MD

≥29000

ASTM D882

TD

≥29000

4

Break elongation



(%)

MD

≥100

ASTM D882

TD

≥90

5

Shrinkage



(150 C 30 min)

MD

≤1.5

ASTM D1204

TD

≤0.5

6

Haze (%)

≤3.0

ASTM D1003

7

Gloss (%)

≥90

ASTM D2457

8

Friction coefficient

≤0.5

ASTM D1894

9

Wetting strain (Corona)

(mN/m)

≥50

DIN53364

10

Density (g/cm)

1.4



11

Yield (sq in/lb)

41254



Back to Top

Silicone Coated PET Film

Gauge (micron): 12 ~ 40

Application: Adhesive tape.

Back to Top

Chemical Treated Polyester Film-Type 201

for metallization, coating and printing

Product Description

Type 201 polyester film is a bi-axially oriented, made of Polyethylene Terephthalate (PET) which is chemically pre-treated on one side to improve adhesion of Al-metallizing, printing inks, adhesives and coatings. It is widely used in printing laminated , label, al-matellizing, etc.. The outstanding properties of the chemical pre-treatment render corona-treatment of type201s function layer unnecessary. On the contrary, corona-treating the pretreated surface could possibly have a detrimental effect on its properties. There are no restrictions on the corona treatment for the untreated side of type201.

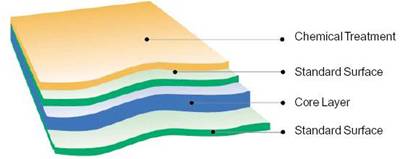

Layer structure type201

When metallizing on the chemically treated surface of type201, outstanding metal adhesion and subsequent lamination bond stength is achievable.

Applications:

- Printed laminated films for packaging

- Laminated films with evaporized metal and metal oxide barrier layers

- Laminated films with particularly high bond strength requirements

- Silicon coated films

 Type 201 Polyester Film Physical Standard



NO.

Properties

Units

Standard  Values

Test Methods



1

Thickness Tolerance

%

6-40μm

+/- 5

ISO 4592:1979

GB6672-86



41-75μm

+/- 4



2

Tensile Strength      MD

                      TD

MPa

MPa

≥200

≥200

ISO 1184:1983

GB/T 13022-91



3

Elongation            MD

                      TD

%

%

≥90

≥90

ISO 1184:1983

GB/T 13022-91



4

Heat Shrinkage        MD

(150℃、30min)        TD

%

%

≤2.5

≤1.5

GB/T 16958-97



5

Friction Coefficient

≤0.5

ISO 8295:1986

GB/T 10006-88



6

Wetting Tension (Treatment Side)



mN/m

≥44

ISO 8296:1987

GB/T 14216-93

7

Haze

6-25μm

%

≤3.5

ASTM D1003

GB/T 2410-80



26-40μm

≤4.5



41-75μm

≤6.0





Configuration Standard

NO.

Properties

Units

Standard Values

Test Methods

1

Width Tolerance

mm

+/- 2

ISO 4593:1979

GB6673-86

2

MD Wrinkle

Strip/m

≤ 2

-

3

Lateral Edges Alignment

mm

≤ 2

-

4

Splice

Unit/roll

1

-

5

Splice Percent Per Shipment

%

≤20

-

6

Width Per Roll

mm

325-2500

-

Back to Top

Chemical Treated Polyester Film-Type 211(Acrylic)

Physical Standard



NO.

Properties

Units

Standard  Values

Test Methods



1

Thickness Tolerance

%

6-40μm

+/- 5

ISO 4592:1979

GB6672-86



41-75μm

+/- 4



2

Tensile Strength      MD

                      TD

MPa

MPa

≥200

≥200

ISO 1184:1983

GB/T 13022-91



3

Elongation            MD

                      TD

%

%

≥90

≥90

ISO 1184:1983

GB/T 13022-91



4

Heat Shrinkage        MD

(150℃、30min)        TD

%

%

≤2.5

≤1.5

GB/T 16958-97



5

Friction Coefficient

≤0.5

ISO 8295:1986

GB/T 10006-88



6

Wetting Tension (Treatment Side)



mN/m

≥40

ISO 8296:1987

GB/T 14216-93

7

Haze

6-25μm

%

≤3.5

ASTM D1003

GB/T 2410-80



26-40μm

≤4.5



41-75μm

≤6.0





Configuration Standard

NO.

Properties

Units

Standard Values

Test Methods

1

Width Tolerance

mm

+/- 2

ISO 4593:1979

GB6673-86

2

MD Wrinkle

Strip/m

≤ 2

-

3

Lateral Edges Alignment

mm

≤ 2

-

4

Splice

Unit/roll

1

-

5

Splice Percent Per Shipment

%

≤20

-

6

Width Per Roll

mm

325-2500

-

Back to Top

Matte Film

Description:

It is semi-transparent, antistatic polyester film with high surface dyne level.

Gauge (microns): 12  ~ 25.

Feature:

bullet

Low static charge.

bullet

High haze.

bullet

Good Printing adhesion.

bullet

FDA compliant for contact with food and beverage.

Application:

Label, decoration, packaging and cable wrapping.

Back to Top

Electric Insulation PET Films

Description:

       PET Films are widely used for electric insulation.

Gauge (microns): 8 ~ 350.

Future:

bullet

Good electric insulation.

bullet

excellent heat resistance, low shrinkage.

bullet

Antistatic coating available.

Application:

bullet

Cable wrapping.

bullet

Capacitor.

bullet

Electric transfer, and other electric component.

Back to Top

Aluminum metallized PET Film

Description:

It  is one side vacuum aluminum metallized on plain PET Film , other side corona-treated  to perform high barrier properties.

Gauge (micron): 12 ~ 25.

Feature:

bullet

High barrier properties.

bullet

Both side printable.

bullet

Good lamination adhesion on both side.

Application:

Ground coffee, dehydrated products (milk, potato chips, flakes, soup mix), condiments, pet food packaging.

Back to Top

Color PET Film



Our color PET film is available at white, black, blue color for variety purpose usage.
